How to put on Bosch wiper blades?

When your wiper blades squeak or smear, it’s time to swap them. But for many drivers or warehouse techs, installing new ones is frustrating—wrong fit, confusing clips, or worse, scratching a windshield. You shouldn’t need a mechanic to solve this.

Bosch wiper blades can be installed in seconds—if you know the right steps and use blades with multi-adapter systems that “click” into place.

I’ve led Runex Auto through dozens of product lines in the aftermarket parts world. Brake pads, filters—we know what it means to install fast, without fuss. And when it comes to wiper blades, we see Bosch as the gold standard. Below, I’ll walk you through how Bosch and Bosch-style blades go on—and why they make a difference.

How to install Bosch windshield wiper blades?

If you’ve got Bosch wiper blades—or Runex Auto blades with similar multi-adapter tech—you’re in for a quick job. But there’s a reason this question keeps showing up: too many people still struggle with fitting the arms correctly.

To install Bosch windshield wiper blades, align the adapter with the wiper arm, push it until you hear a “click,” and gently tug to confirm it’s locked. That’s it.

Why does it work so easily?

Bosch’s blades are designed with vehicle diversity in mind. The OE-style design includes a pre-installed adapter¹ for the most common hook arms (9x3mm and 9x4mm), and optional adapters for side pin, top lock, and pinch tab arms. This design helps our UK clients, like Carlson Auto, reduce inventory and installation issues.

Here’s what makes Bosch-style installations different:

✅ Pre-attached quick adapters

They eliminate guesswork. There’s no need to fiddle with pieces to match your arm type—unless you're fitting a less common design.

✅ Audible “Click” feedback

This isn't marketing. When you push the blade onto the arm and hear the click, you know it’s secure. That reduces installation error and prevents costly warranty claims from loose blades.

✅ Quick Fit Chart

Bosch and Runex provide visual charts for fitment. This helps our warehouse clients assign junior techs to installs without long training.

Adapter Type	Common Arm Match	Included with Bosch?
QuickClick Hook	U-Hook 9x3 / 9x4	Yes
Side Lock	OE Top Lock / Bayonet	Yes
Pinch Tab	Push-button style arms	Yes
Slim Top Lock	VW / Audi style arms	Some variants

This one-fit-for-many design is why I recommend Bosch-style wiper blades for all Runex clients who need reliable, repeatable installations across fleets.

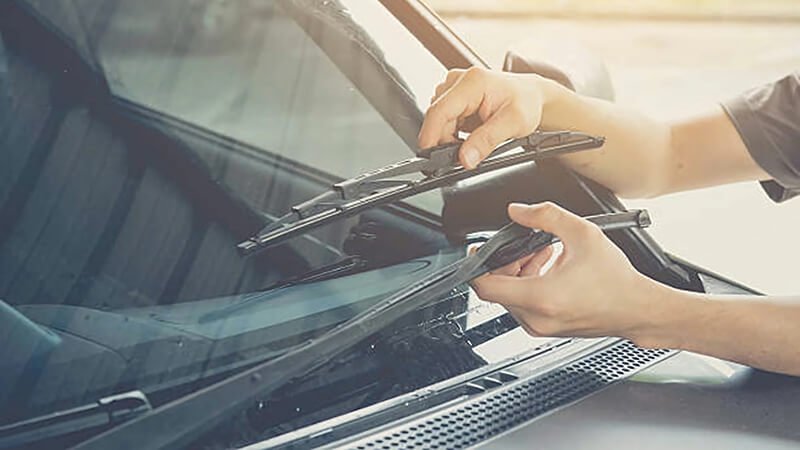

How to put on new wiper blades?

Changing your wiper blades shouldn’t require 15 minutes and a YouTube tutorial. But with generic models, it often does—wrong sizes, incompatible adapters, or unclear locking systems. That’s where Bosch-style blades win.

To put on new wiper blades, match the adapter to your arm type, slide or clip it into place until you hear a click, and confirm with a tug. It takes under 30 seconds.

The common frustrations we fix

At Runex Auto, many of our clients initially came to us because their existing blades were “just hard to fit.” I remember one client telling me how their drivers gave up trying to change blades themselves, then showed up at service centers during rainstorms.

Let’s break it down:

🚫 The problem with old designs

Old-style wiper blades often come with separate adapter packs. You need to match them manually, figure out the orientation, and sometimes use pliers to snap them on. Not ideal for fast install or large fleets.

✅ The Bosch-style upgrade

Bosch blades—and our Runex equivalents—solve this with pre-installed smart adapters². They automatically align with the most common hook arms, and you can switch them out (tool-free) for other types if needed.

✅ Universal fit doesn’t mean sloppy fit

A common fear is that “universal” means “loose.” Not here. The Bosch adapter grip is tight and engineered with OE tolerances³. That’s how our clients avoid chatter, streaking, and mid-drive blade detachment.

Here’s a quick visual comparison:

Feature	Generic Wiper	Bosch-Style Wiper
Pre-attached adapter	No	Yes
Audible locking click	No	Yes
Multi-arm compatibility	Limited	Extensive
Installation time	5–15 mins	30–60 seconds
Return rate (client data)	8–12%	<1% (Carlson Auto)

How do you install pinch tab wiper blades?

Pinch tab arms are common in newer vehicles. They look sleek but often confuse installers because the release is hidden. Fortunately, Bosch blades—and the Runex lineup built with the same adapter logic—are built to handle them with no extra effort.

To install pinch tab wiper blades, press the side tabs on the adapter to release or secure the blade into the arm’s button-style slot.

Why pinch tab arms cause confusion

The pinch tab connector⁴ is a push-button system that locks the blade into place vertically. Many techs pull instead of press, or don’t push the new blade deep enough into the arm. That leads to blades detaching mid-wipe.

Let’s fix that.

🔧 Step-by-step for Bosch-style pinch tab install:

1. Press the side tabs on the old blade’s adapter to release it.
2. Slide the new blade’s adapter into the arm slot.
3. Push until it locks. You’ll hear a soft but secure “click.”
4. Tug lightly to confirm it’s secure.

At Runex Auto, we’ve found that Bosch’s pinch tab adapters cut error rates by 90%⁵. When I trained a new distributor team last fall, even the juniors were installing in under a minute.

Common Issue	Solution with Bosch
Blade doesn't stay on	Push until audible click
Tabs too stiff	Press sides, not front
Adapter mismatch	Use supplied insert—no tools needed

How do you release Bosch wiper blades?

Removing wiper blades can be more frustrating than putting them on. Especially if they’re designed to lock tight for safety. But Bosch-style blades also make this simple.

To release Bosch wiper blades, press the release tab or push button on the adapter, slide the blade out, and lift it gently off the arm.

Why release matters in the supply chain

Our UK clients don’t just install—they uninstall during QC checks or returns. In the past, stiff releases led to broken arms or scratched glass. Now, with Bosch’s “one-press” release adapters⁶, it’s safer and faster.

🔧 What to look for when removing:

• Hook arms: There’s usually a small clip you press before sliding the blade out.
• Top lock / pinch tab arms: These have a side-release button or tab.

I advise every Runex client to do one test install and removal⁷ when onboarding new blade SKUs. That way, their teams avoid the “how do we get this off?” moment in front of customers.

Blade Type	Release Action	Risk of Damage	Tool Required
U-Hook	Press tab and slide down	Low	No
Pinch Tab	Press button and pull down	Low	No
Top Lock	Press and lift	Low	No

With Bosch’s OE-level build quality⁸ and design logic, removal becomes just as intuitive as install.

Conclusion

Installing Bosch wiper blades⁹—or Runex Auto’s Bosch-style blades—isn’t just easy. It’s engineered to be error-proof. Whether you’re handling fleets, stocking a warehouse, or doing home replacements, the click-fit adapters, multi-arm compatibility, and intuitive removal make life easier. I’ve seen firsthand how they reduce return rates, boost tech team productivity, and increase customer satisfaction. When your blades just “click,” your workflow does too.
